Cosy warmth for outdoors. The Gas Heater Cuna provides powerful heat of up to 11 kW when needed – ideal for the terrace, garden or courtyard. Its slim column shape, piezo-electric ignition and multiple heat settings ensure straightforward comfort.
Highlights
- Powerful heating output up to 11 kW for noticeable warmth outdoors

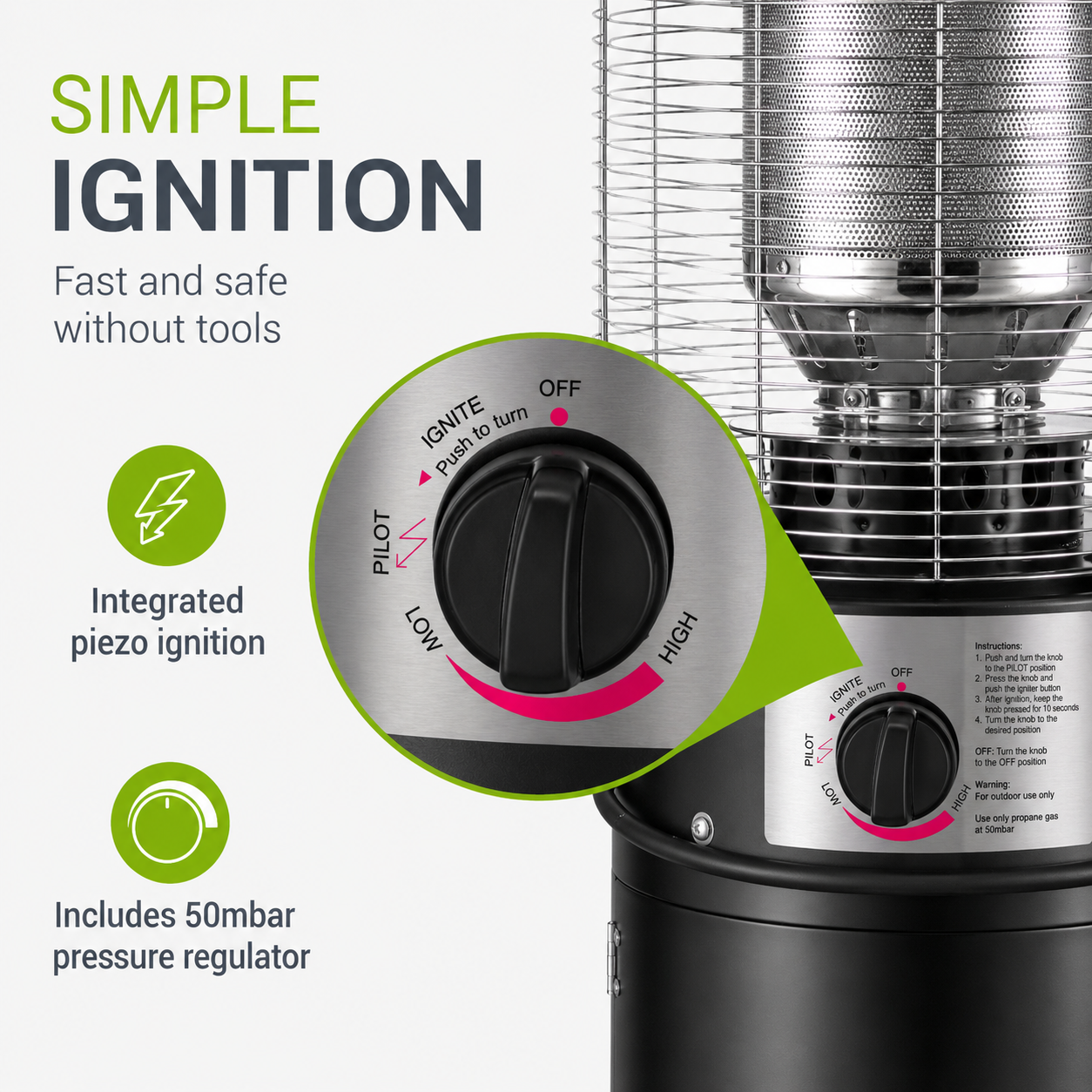

- Piezo igniter – light without matches, simply at the push of a button
- Multiple heat settings from low to high for flexible heat output
- Protective grille for safe handling, stable base and integrated door for the gas bottle
- Mobile thanks to 4 transport wheels – quickly repositioned when it gets draughty
Dimensions & Materials
Overall: Ø46 × 136 cm
Material: Metal casing
Surface/Colour: High-gloss lacquered, black
Components: 4 transport wheels, 1 rotary control, 1 piezo igniter, 1 protective grille
Load capacity: Not intended as a storage surface
Technical Data
Gas type: Butane, propane or propane-butane mixtures
Gas pressure: 50 mbar
Gas consumption: Max. 800 g/h
Heating output: Max. 11 kW
Ignition: Piezo-electric
Suitable gas bottles: 5 kg and 11 kg
Dimensions: Ø46 × 136 cm
Net weight: Approx. 13 kg
Electrical components/functions present: Piezo igniter
Assembly & Setup
Wall mounting required/recommended: No
Assembly effort: Easy
Persons required for assembly: 1
Tools required: Cross-head screwdriver and spanner, included in delivery
Scope of Delivery
Gas Heater Cuna, assembly materials, tools (cross-head screwdriver and spanner), assembly instructions.
- Number of packages: 1
-
Package: 88 × 46 × 46 cm, 15.9 kg
Use & Care
Placement:
Only use in well-ventilated outdoor areas; maintain at least 100 cm distance from walls and ceiling.
Care:
Clean with a soft, slightly damp cloth; do not use abrasive cleaners or flammable cleaning agents.
For longer operating times and high heat settings, use an 11-kg gas bottle – this keeps the performance stable.
Service Notes
Is your delivery damaged? Please check the entire order for completeness and further damage – especially sensitive surfaces such as lacquer – and send us photo documentation. Also, please provide the part number(s) from the instructions for quick replacement. Further information and procedures can be found in the following article.
Frequently Asked Questions
Can I operate the Cuna indoors?
No. Use it exclusively in well-ventilated outdoor areas with sufficient fresh air supply.
Which gas bottles are suitable?
Suitable for 5-kg and 11-kg bottles with 50 mbar low-pressure regulator.
Do I need batteries for the piezo igniter?
No. The piezo igniter operates without batteries.
What is the maximum output?
Up to 11 kW, adjustable via the heat settings.
Why can small gas bottles frost over at full power?
When evaporating, the liquid gas extracts heat from the bottle. Small bottles have less gas volume and surface area for heat replenishment and therefore cool down faster. Moisture condenses on the outside and freezes.
In summary – why choose the Gas Heater Cuna?
Strong 11 kW output, comfortable piezo ignition and slim appearance. The Cuna quickly makes outdoor spaces cosy – flexible, safe and easy to use.
